SWAGING / BEADING MACHINES

Brila Teknik has worked with the production of machines and tools for over 35 years, and we have developed our own type of portable hand-held swaging/beading machine.

​

Our most sold hand-held beading machine is mounted on a high-quality industrial battery-operated drilling machine.

​

We have further improved and upgraded our hand-held swaging/beading machine - Now we produce 2 new versions – Model 2026/50 and Model 2026/320 – please see the video above.

​

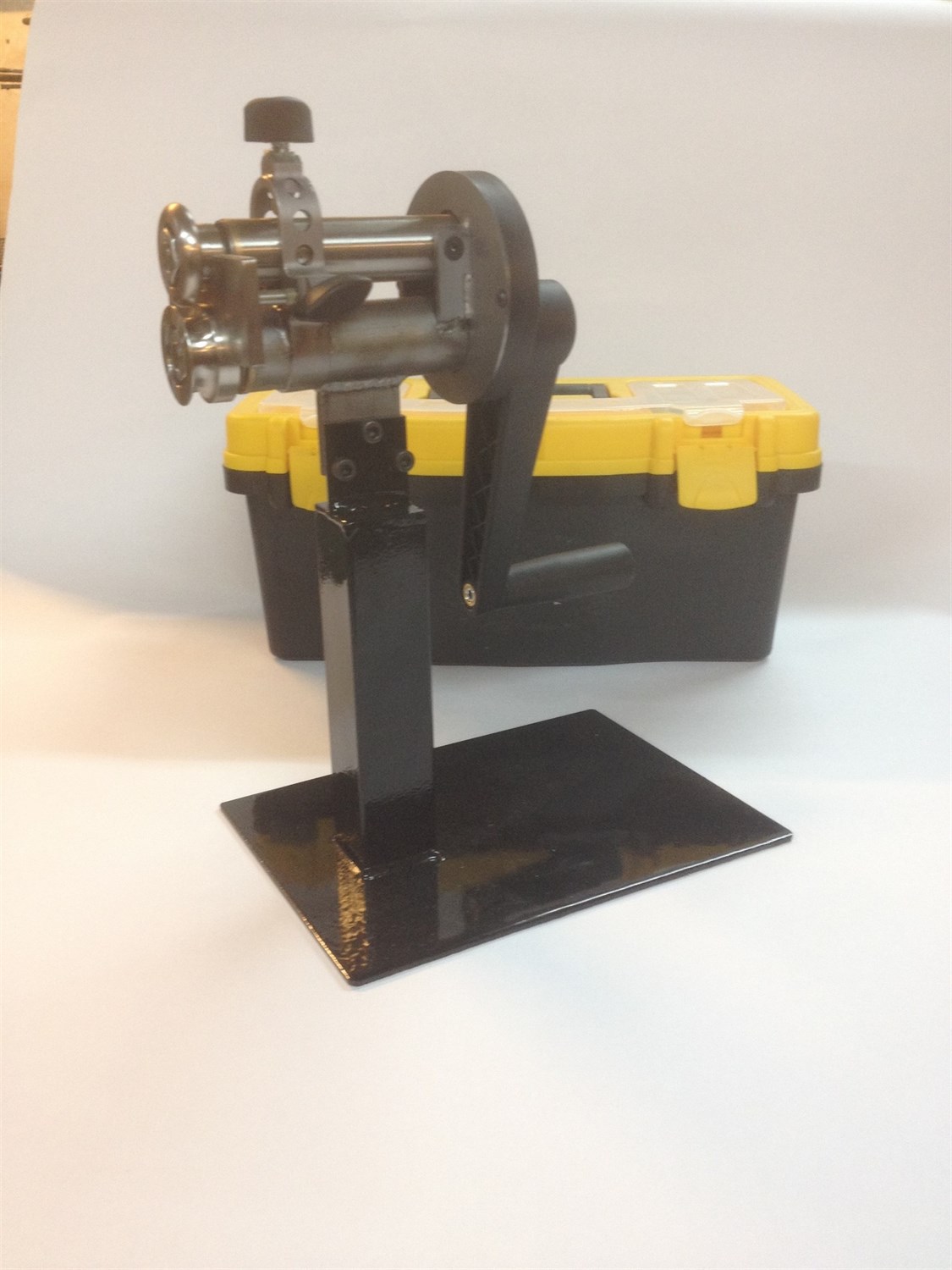

Additionally, we also produce a manual swaging/beading machine without battery.

The advantage of our hand-held swaging/beading machines is their portability, which makes them easy to transport and carry around the work site.

​​BEADING MACHINE

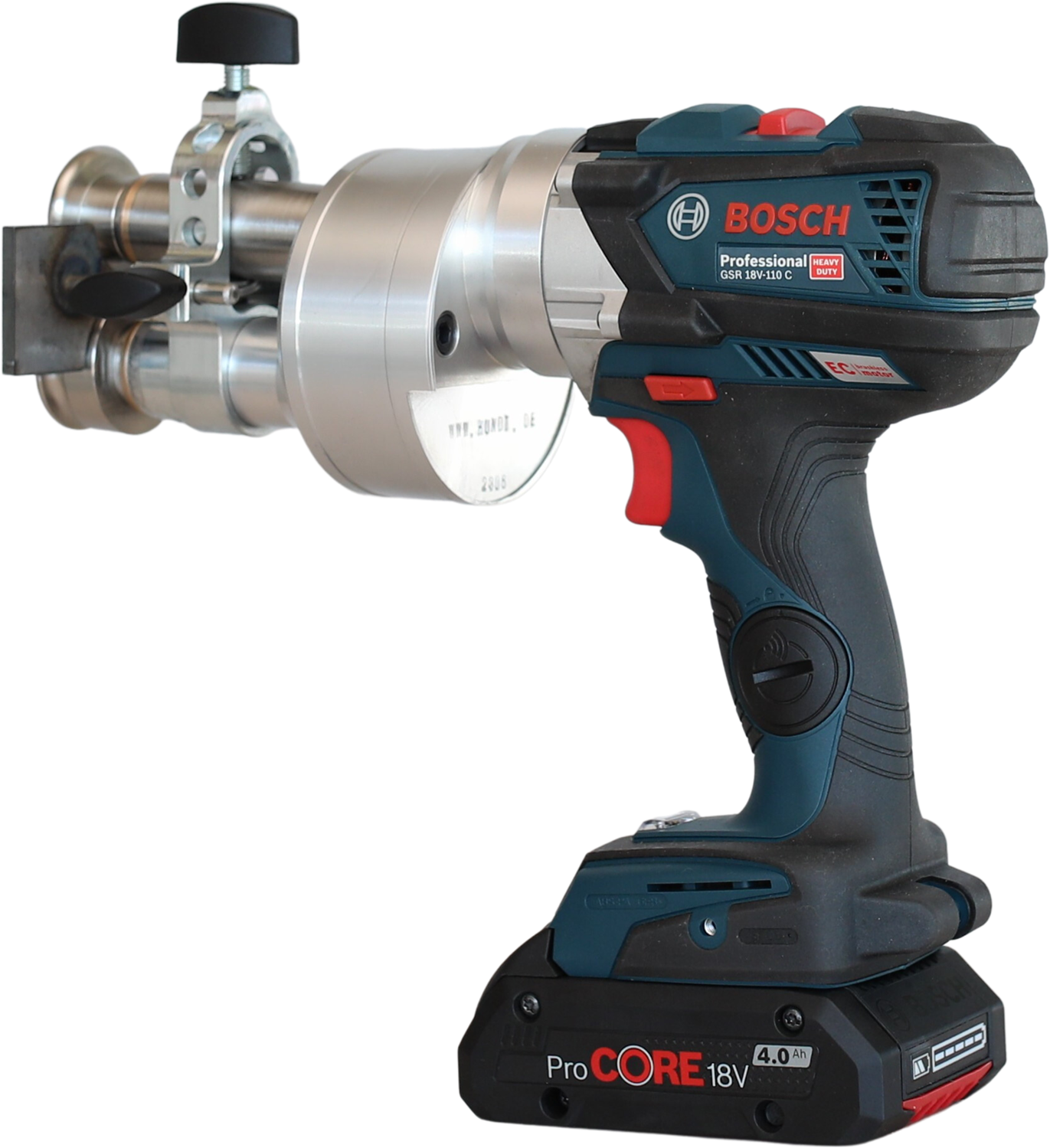

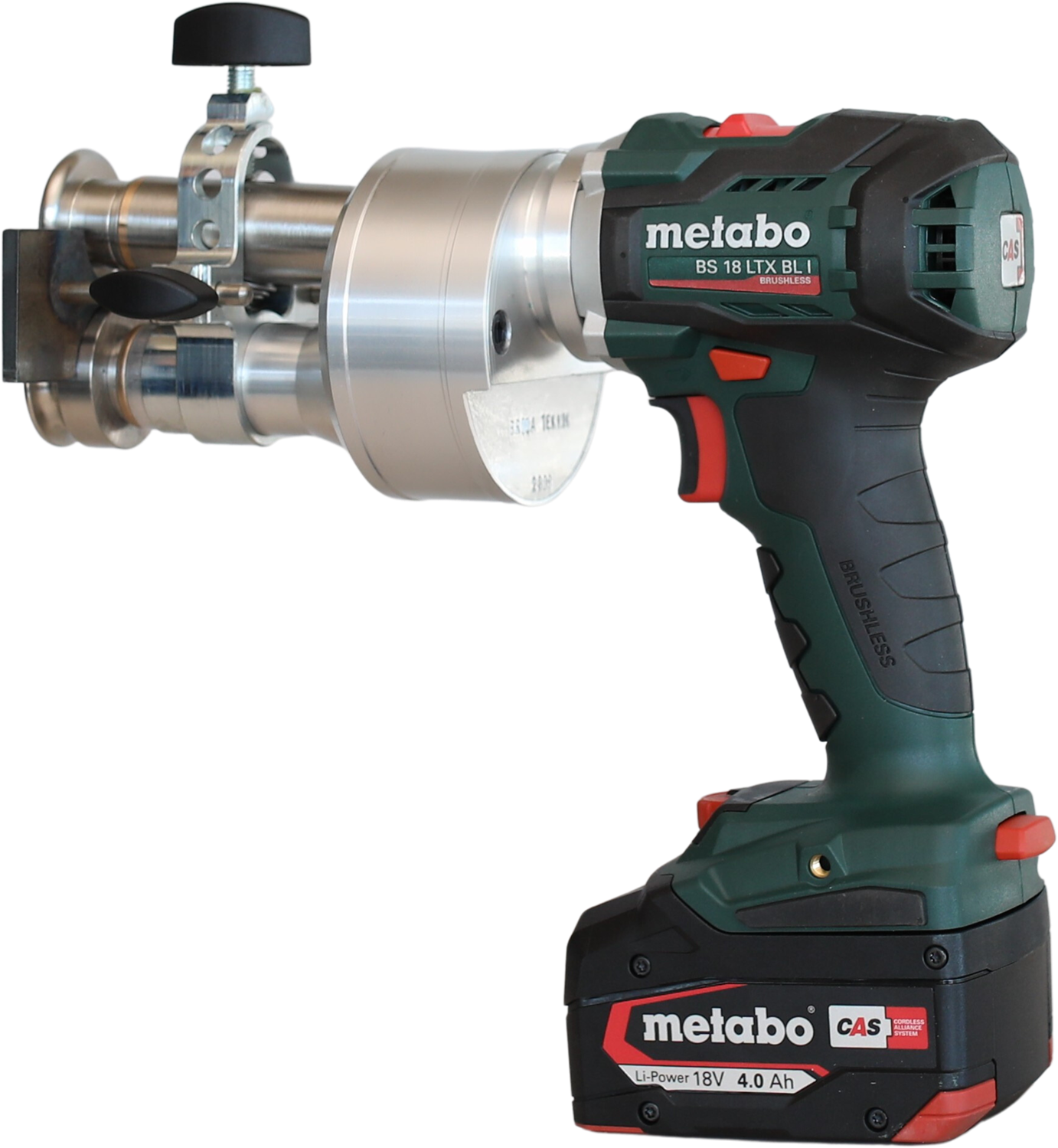

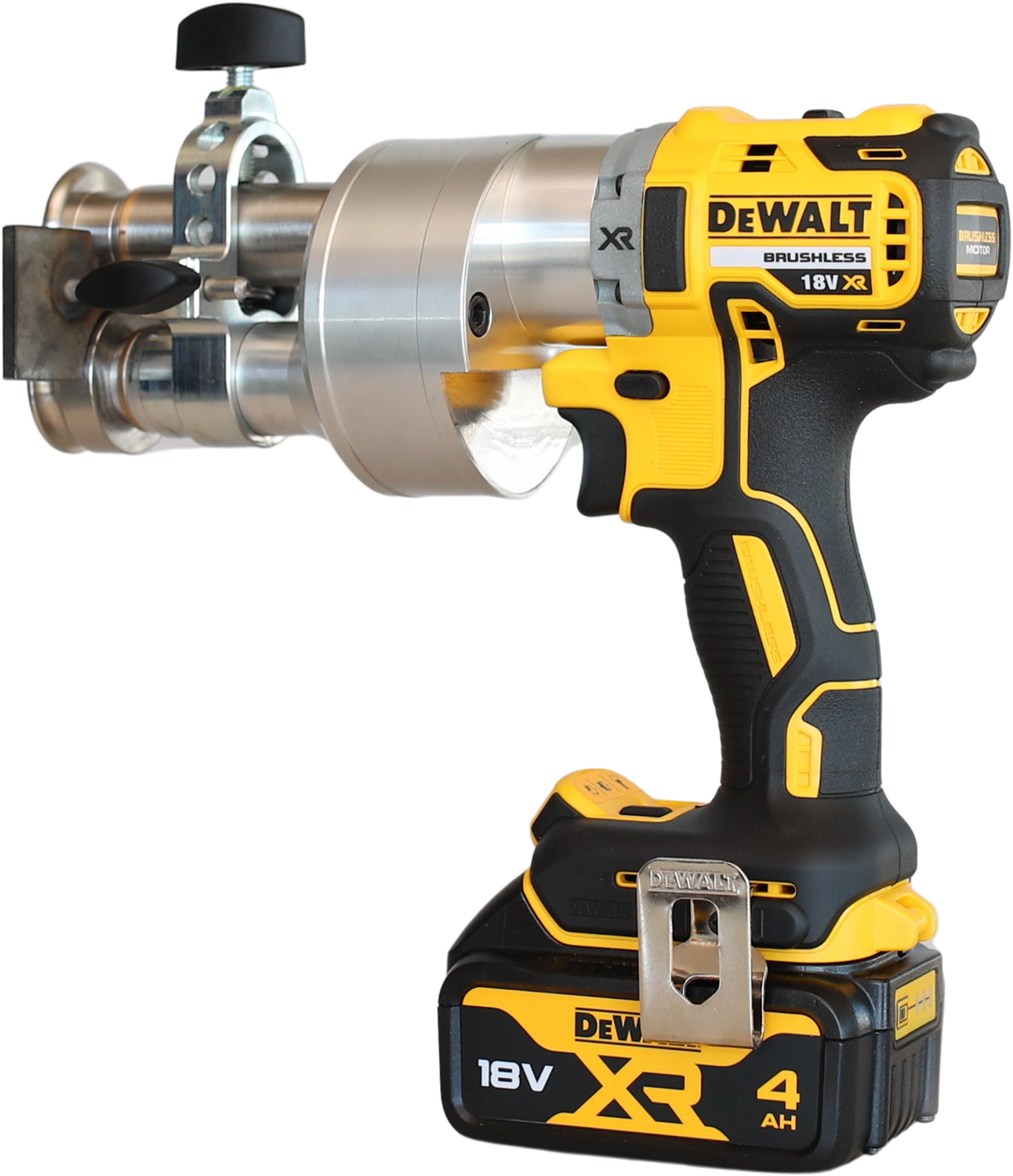

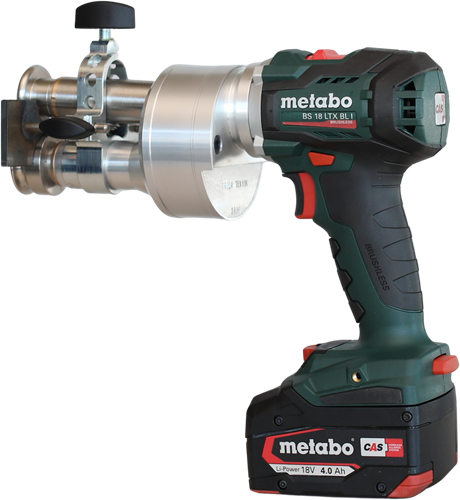

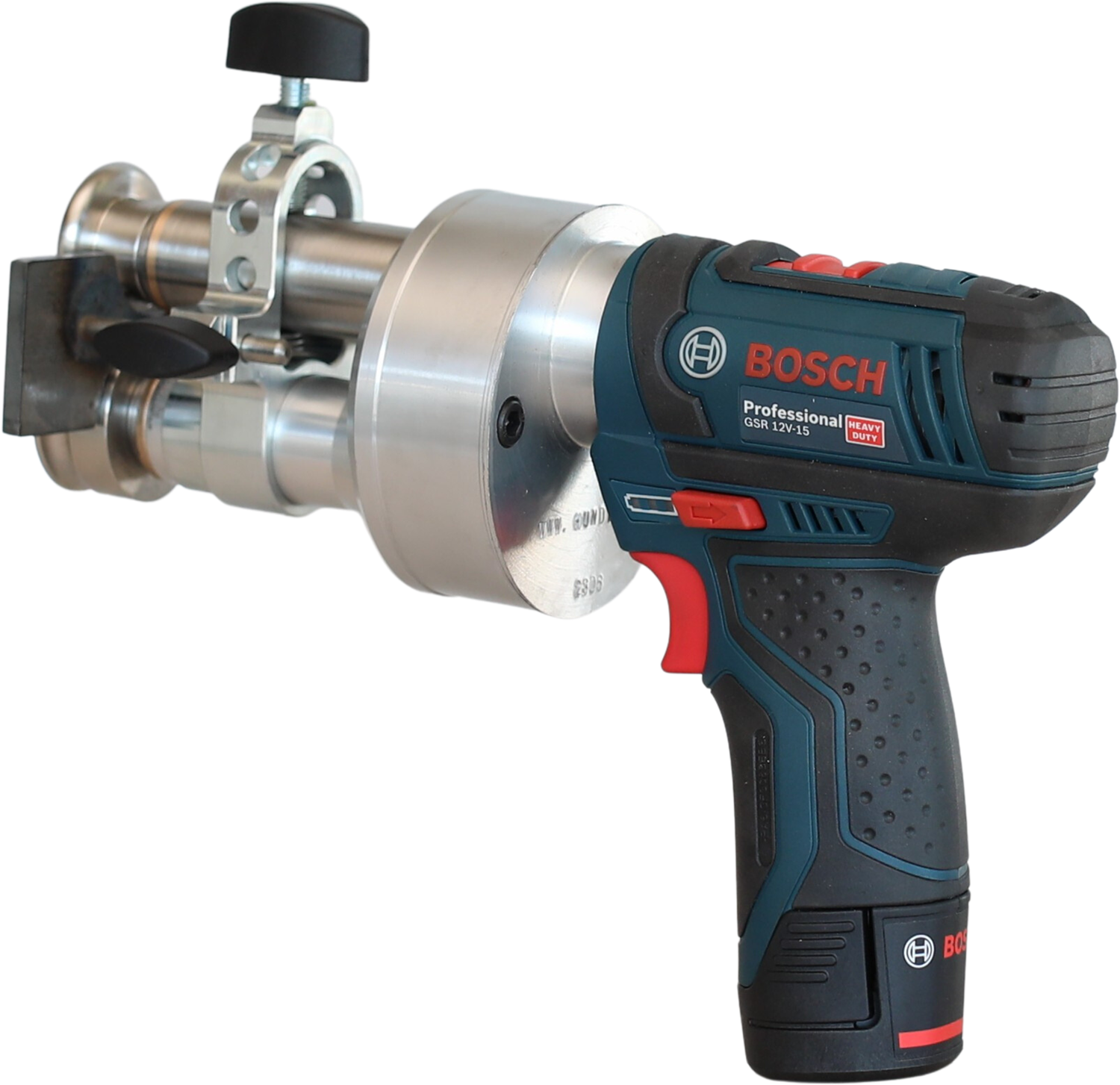

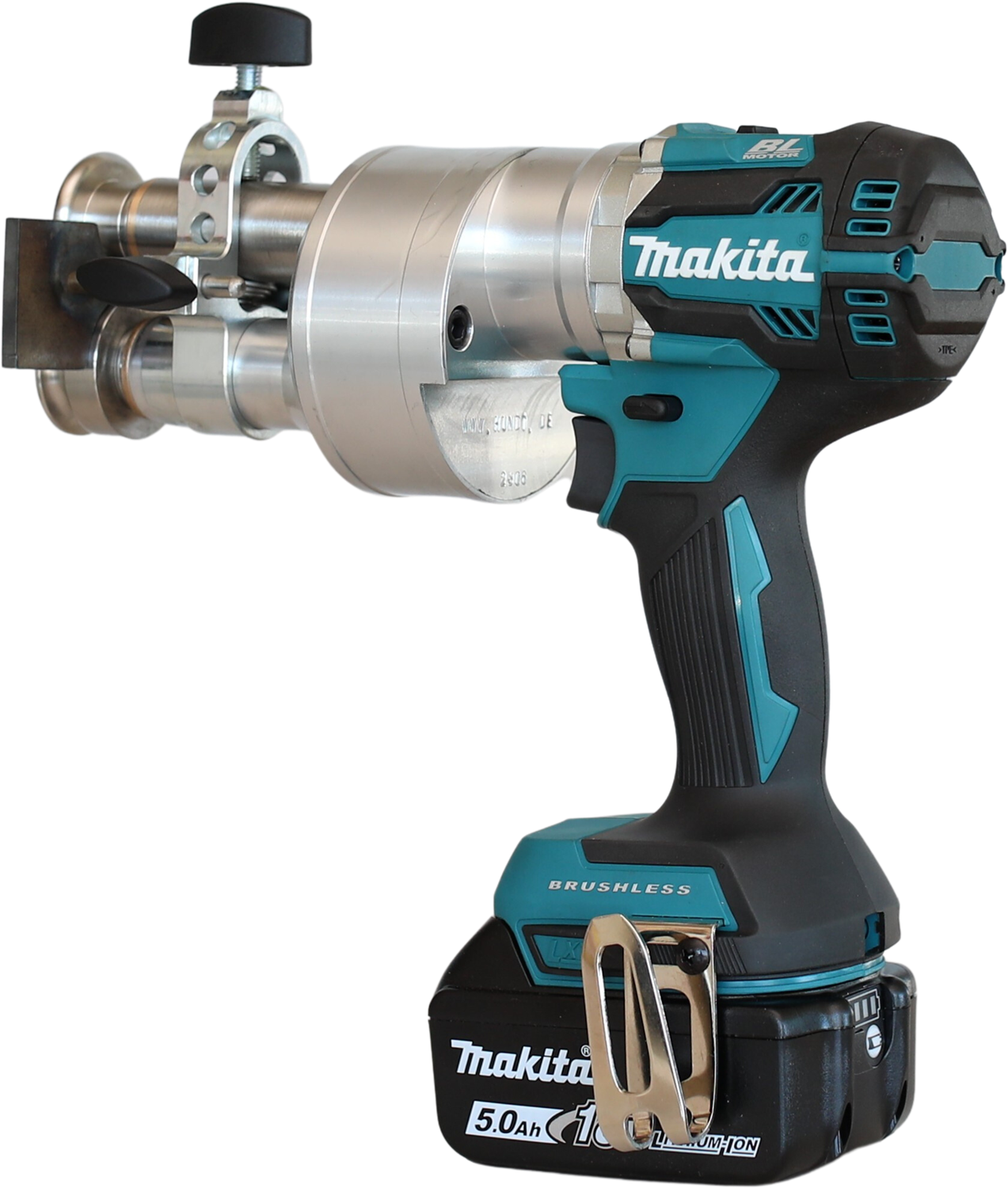

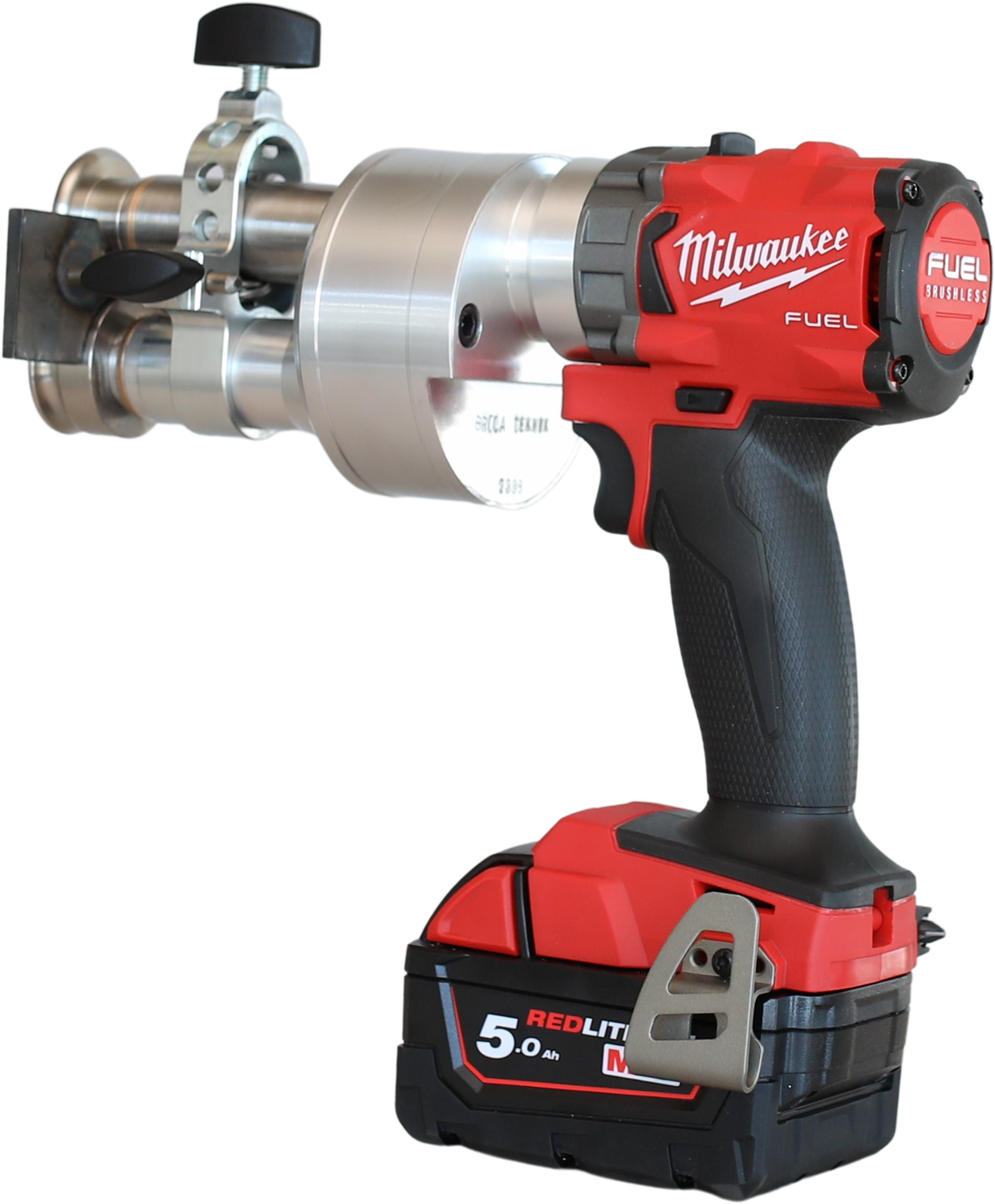

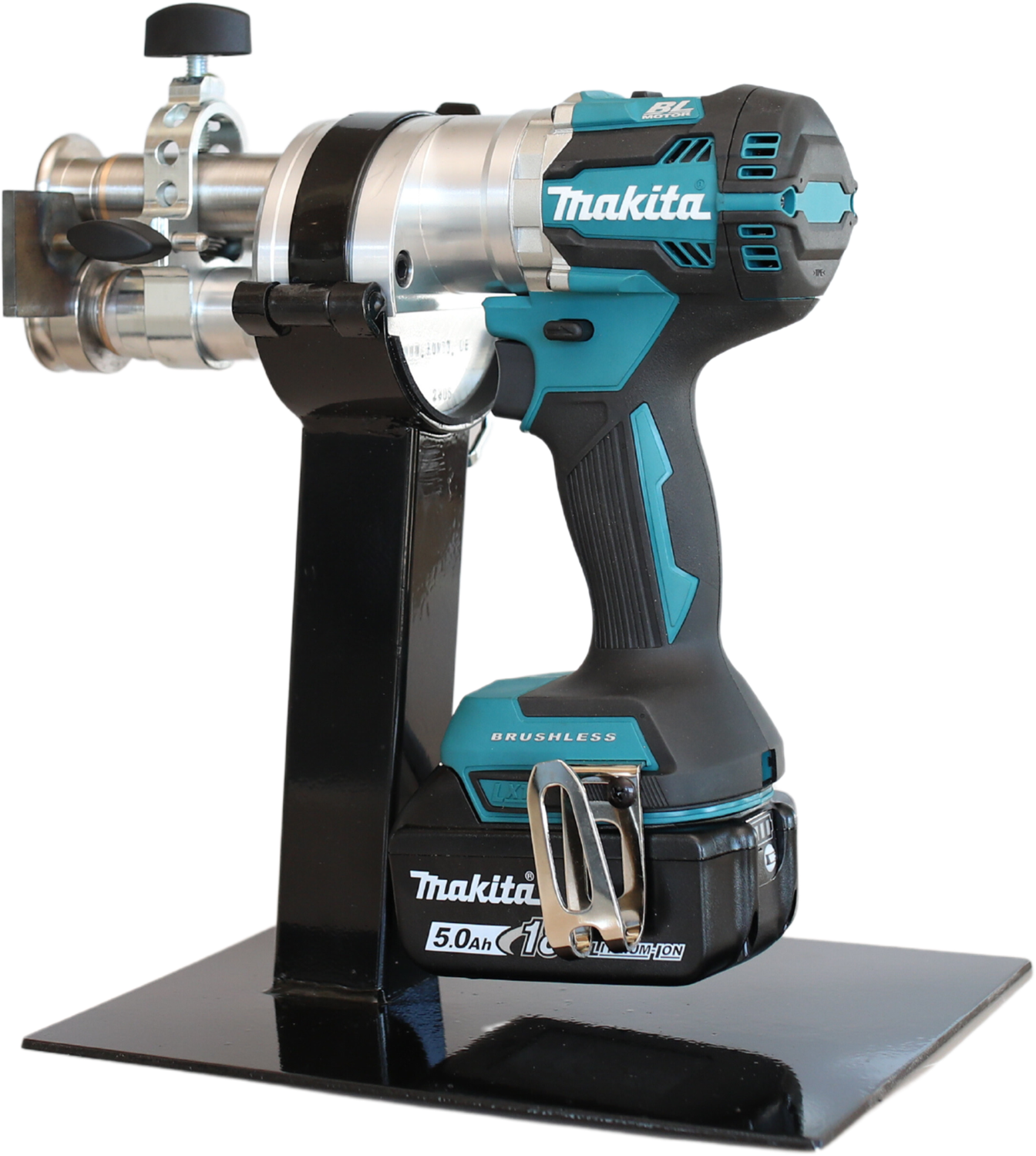

​​Brila Teknik primarily mounts the swaging/beading machine on Makita, DeWalt, Bosch, Metabo and Milwaukee. But we will to a certain extent mount it on other brands, at the request of the customer.

​

​TECHNICAL DESCRIPTION

​Speed: Variable from 0-44 m/min. (2 gears)

​

Material thickness:

• Aluminium 0.1-1.5 mm.
• Galvanized steel 0.1-1.0 mm.
• Stainless steel 0.1-0.8 mm.

​

Total weight:

• 1.6 kg. + the weight of the drilling machine and accessories.​

​

ACCESSORIES

Brila Teknik has invented several special designed wheels and accessories for swaging/beading machine – for further information look at “Accessories”.

​

DELIVERY

The swaging/beading machine is delivered in a customized suitcase with 2 batteries, 1 quick charger, a clamp wrench, and the accessories the customer orders.
